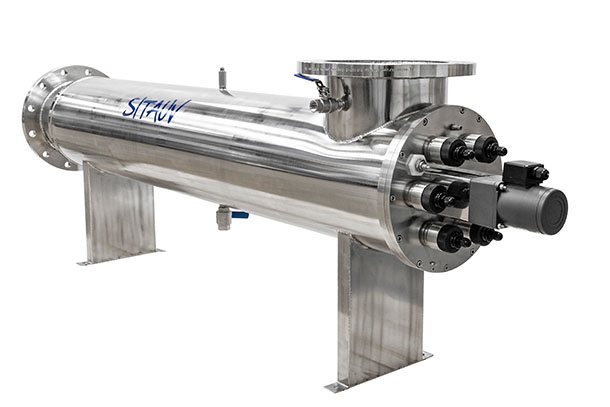

440 Series

The main feature of the series 440 is the powerful amalgam lamp with a lifespan of 16.000 hours. This series is capable of trating flow rates from 50 to nearly 3000 m3/h. Entirely made in 316L stainless steel, it has a horizontal configuration.

FLOW RATE:

From 50 to 3500 m³/h
LAMPS:

Low-pressure amalgam lamps
LAMP LIFE:

16.000 hrs
UV CHAMBER MATERIAL:

316L stainless steel
HYDRAULIC CONNECTIONS:

From DN80 to DN550
MAX PRESSURE:

10 bar
SYSTEM CONFIGURATION:

Horizontal / L
WATER QUALITY:

UVT 80-97% 1cm

These systems are designed for industrial use. The series 440 starts with a model feauring a single lamp, and goes up to the largest system with 50 lamps. The horizontal L shape configuration guarantee an excellent disinfection thanks to a better water distribution. The automatic sleeve cleaning system is available on all models. The panel with a touch screen is designed for seamless integration with the main treatment plant's PLC. The irradiation sensor ensures consistent control of the disinfection level.

ELECTRICAL PANEL

MODEL:

ECOLINE - ST
DISPLAY:

LCD - TOUCH SCREEN
IP PROTECTION:

IP54 (more on request)
REGOLAZIONE POTENZA LAMPADE:

50-100%
PANEL MATERIAL:

painted steel (more on request)
POWER SUPPLY:

230V 50-60hrz- 400V 50-60hrz (more on request)

440 Series

ELECTRICAL PANEL

Where you can use it

Drinking water

Food & beverage

Horticulture

Pharmaceutical Industry
